What an X-Ray Shows in a Knee With Arthritis

Knee X-rays for arthritis evaluation are taken while you stand – a weight-bearing view – because the load you place on the joint while standing reveals the true degree of joint space narrowing that non-weight-bearing images can underestimate.

A radiologist reviewing a knee X-ray for signs of arthritis will typically look for four findings:

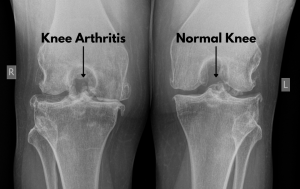

• Joint space narrowing – The gap between the thighbone (femur) and shinbone (tibia) narrows as cartilage wears away. This is the primary indicator of cartilage loss on X-ray.
• Osteophytes (bone spurs) – Bony projections develop at the edges of the joint as the body attempts to stabilize an area of wear.
• Subchondral sclerosis – The bone beneath where cartilage sits becomes denser and more visible on film as arthritis progresses.
• Bone cysts – Small fluid-filled cavities can develop in the bone in more advanced cases.

Together, these findings confirm the presence of osteoarthritis and help your specialist understand how far it has progressed.

The Kellgren-Lawrence Grading Scale

Doctors use a standardized scoring system called the Kellgren-Lawrence (K-L) scale to describe the severity of knee osteoarthritis causes and progression based on what X-ray images reveal. The scale runs from Grade 0 to Grade 4:

• Grade 0: No radiographic signs of arthritis
• Grade 1: Minor bone spur formation, no joint space narrowing
• Grade 2: Definite bone spurs, possible narrowing of joint space
• Grade 3: Moderate joint space narrowing, multiple spurs, bone density changes
• Grade 4: Significant joint space narrowing, large spurs, bone-on-bone contact

The K-L grade plays a role in treatment planning. Patients with moderate arthritis – typically Grade 2 or Grade 3 – are often the most appropriate candidates for minimally invasive interventions. Your K-L grade is one data point, not a prescription. Symptom severity, physical function, and soft tissue findings are also weighed before any treatment path is recommended.

Learn About Your Knee Pain

What X-Rays Cannot Show

Cartilage is soft tissue. It does not absorb the electromagnetic energy used in X-ray imaging, so cartilage does not appear on the film. What X-rays reveal is the absence of cartilage – through joint space narrowing where cartilage once existed.

This distinction matters for a few reasons:

Early-Stage Arthritis May Look Normal

Before meaningful joint space narrowing develops, an X-ray can appear nearly normal even when symptoms are already present and cartilage is beginning to wear. This is why early signs of knee arthritis – such as stiffness, aching with activity, and reduced range of motion – are evaluated alongside imaging rather than relying on X-ray alone.

X-Ray Findings May Not Match Your Pain Level

Research confirms that the degree of structural change visible on X-ray does not reliably predict the level of pain or functional limitation a person experiences. Some patients with significant structural findings have manageable symptoms, while others with milder radiographic changes experience significant pain. This is why imaging results are always interpreted in the context of your full clinical picture.

Synovial Inflammation Is Not Visible on X-Ray

Abnormal blood vessel growth in the synovium – the joint lining – is a key contributor to knee pain in osteoarthritis. This type of inflammation, which can be associated with symptoms including knee swelling and persistent aching, is not captured by standard X-ray imaging.

When Other Imaging Is Added

MRI

Magnetic resonance imaging provides detailed views of cartilage, ligaments, and the meniscus that standard X-rays cannot produce. MRI may be ordered when symptoms are more significant than what the X-ray reveals, when another condition may be contributing to knee pain, or when soft tissue involvement needs to be evaluated more precisely before a procedure is considered.

Ultrasound

Ultrasound uses sound waves to visualize soft tissues and blood vessels in and around the knee. It is particularly effective at detecting synovial inflammation – the abnormal overgrowth of blood vessels in the joint lining that is closely linked to pain in knee osteoarthritis. At USA Pain Center, ultrasound is part of the evaluation process used to assess inflammation and identify whether a patient may be a candidate for genicular artery embolization (GAE), a minimally invasive, image-guided procedure that targets the abnormal neovasculature associated with joint inflammation.

What Imaging Means for Your Treatment Options

An X-ray finding does not automatically point toward one treatment. Knee osteoarthritis is managed across a spectrum, and imaging helps specialists understand where on that spectrum a patient falls.

Conservative approaches are typically recommended first, particularly for patients with mild imaging findings and manageable symptoms. Options may include physical therapy to strengthen the muscles that support the knee joint, weight management to reduce load on the joint, anti-inflammatory medications to manage pain and swelling, and activity modification to protect the joint during daily movement.

For patients whose symptoms persist despite conservative care, imaging findings help determine whether more targeted intervention may be appropriate. One option at USA Pain Center is genicular artery embolization (GAE), an outpatient, image-guided procedure that uses imaging to locate and reduce blood flow to abnormal vessels linked to joint inflammation. A review of your X-ray and, in some cases, additional imaging such as ultrasound or MRI is part of the evaluation process used to determine whether GAE is suitable for your situation. Not every patient is a candidate, and a specialist evaluation is the appropriate first step.

A specialist evaluation is the clearest path to an accurate picture of what is happening in your joint and what options may be available based on your specific imaging and symptoms.
